LT7911UXC

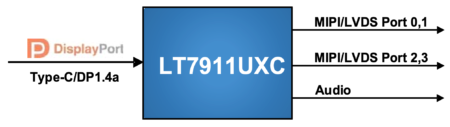

Type-C/DP 1.4 to 4-Port MIPI/LVDS with Audio

• Compliant with DisplayPort 1.4a (DP 1.4a) & Embedded DisplayPort 1.4b (eDP 1.4b)
• Type-C DisplayPort Alt Mode
• Maximum resolution 4k120Hz / 8k30Hz (8k60Hz with DSC (Digital Stream Compression))
• Maximum bandwidth 32.4Gbps
• Support for repeater function of HDCP 2.3 RX/TX to realize long cable connections
• 1/2/4-port (configurable) MIPI 1-clock lane and 1-4 data lanes
  • D-PHY: 2.5Gbps per data lane (= 40Gbps for 4 ports)
  • C-PHY: 5.7Gbps per data lane (= 68.4Gbps for 4 ports)
• 1/2/4-port (configurable) LVDS 1-clock lane and 3-5 data lanes
  • 1.2Gbps per data lane (= 24Gbps for 4 ports)
• Embedded SPI flash for firmware and HDCP keys
• Firmware update through SPI/I2C/USB
• Up & down scaler up to 4k
• Temperature range: -40°C to +85°C

Application area: VR, video conferencing, display

Product brief: LT7911UXC – Lontium Semiconductor
